Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder

Marka Adı:	Comesh
Model Numarası:	ARABA-0025
Moq:	50 metre.
fiyat:	Anlaşılabilir
Ödeme Şartları:	Banka havalesi, Western Union,
Tedarik Yeteneği:	Ayda 800 rulo

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

SGS

İsim:

Ters Hollandalı Örgü Paslanmaz Çelik Tel Otomatik Metal Filtre Ekran Örgü Kemeri, Plastik Ekstruder

Malzeme:

Paslanmaz çelik 201 ,304,316L

Genişlik:

10cm,12cm,12.7cm,15cm,20cm

ağ:

72/15,152/30,152/24,260/40

Özellikler:

Yüksek kalite, Dayanıklılık, Sağlamlık

Uzunluk:

10 metre, 15 metre, 20 metre

Başvuru:

plastik tel çekme makinesi, döküm film makinesi ve film kaplama makinesi

tip:

Örgü elek, örgü filtre diski

Kullanım:

Plastik endüstrisinde eriyik filtreleme

Ambalaj bilgileri:

İçinde kraft kağıt, dışında kontrplak kutu

Vurgulamak:

Reverse Dutch Weave stainless steel wire mesh

Auto metal filter screen belt

Stainless steel mesh for plastic extruder

Ürün Tanımı

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder

Continuous belt screens, refer to reverse dutch weave filter belts made of stainless steel wires. The continuous (automatic) belt screens are the innovation of extruder screens. They are used for screening impurities out of molten plastic. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production and high filtering performance in cast film and blown film production and other plastic filtering processes.

Description:

Name	201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer
Width	10cm,12cm,12.7cm,15cm,20cm
Mesh	260/40mesh,72/15mesh,152/30mesh,152/24mesh
Weave style	Reverse Dutch Weave
Keywords	Automatic Band Filter Screen Belt/ Reverse Dutch Weave mesh belt

Application:

1. It is suitable for the filtration of plastic wire drawing machine, casting film machine and film coating machine, such as
plastic woven bag, plastic film and so on.
2. In acid, alkali environment conditions sieving and filtering.
3. Petroleum industry as mud mesh.
4. Chemical fiber industry as screen mesh.

5. Plating industry as acid cleaning mesh.
6. Widely used in aerospace, cachinery, plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.

Advantage:

Continuous (automatic) belt filter has the resistance to acid, alkali, corrosion and high temperature.
More effective in extruder screening and better filtration performance.
Wide ranges of mesh sizes for different filtration requirements and grades.
Suitable for various automatic screen changers.
Uninterrupted replacement for effective production.

Mesh	Wire Diameter (mm)	Thickness (mm)	Width (cm)
45x15	0.45x0.6	1.75	8-85
72x15	0.45x0.55	1.7	8-85
120x16	0.35x0.45	1.36	8-85
132x17	0.3x0.45	1.3	8-85
152x24	0.3x0.40	1.2	8-85
160x18	0.28x0.45	1.27	8-85
200x40	0.15x0.27	0.7	8-130
260x40	0.15 x0.27	0.65	8-130
300x40	0.15 x0.27	0.65	8-130
360x40	0.13 x0.27	0.6	8-130
Special specification we can produce according to customer's requirements

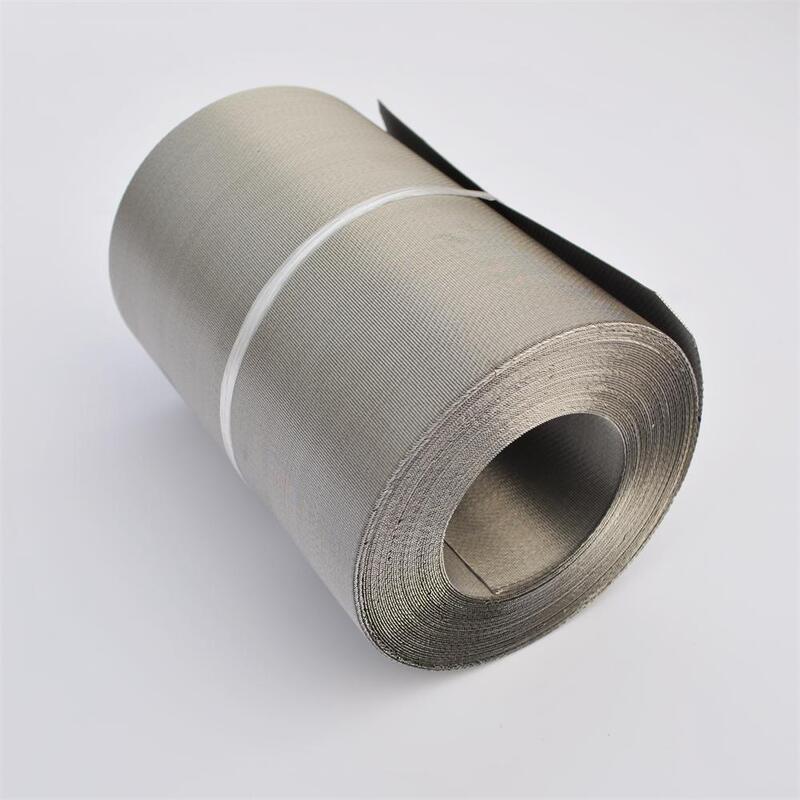

Products show:

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder 0

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder 1

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder 2

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder 3

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder 4

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder 5

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder 6
