304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

Marka Adı:	COMESH
Model Numarası:	CM-CB2511201
Moq:	2 m
fiyat:	USD35-55 per meter
Ödeme Şartları:	D/A,D/P,T/T,Western Union,
Tedarik Yeteneği:	haftada 500m

Ayrıntılı Bilgiler

Ürün Tanımı

Ayrıntılı Bilgiler

Menşe yeri:

Çin

Sertifika:

FDA

Malzeme:

Paslanmaz Çelik 304

Genişlik:

800 mm veya özelleştirilmiş

Uzunluk:

Rulo başına 6 m veya özelleştirilmiş

Tel Çapı:

1,5 mm veya özelleştirilmiş

Çubuk çapı:

6 mm veya özelleştirilmiş

Spiral adım:

8 mm, veya özel

Zincir aralığı:

38,1 mm veya özelleştirilmiş

Ambalaj bilgileri:

PP torba içinde ve daha sonra tahta sandık dışında

Vurgulamak:

304 stainless steel conveyor belt

chain driven freezer conveyor belt

balance weave spiral wire mesh

Ürün Tanımı

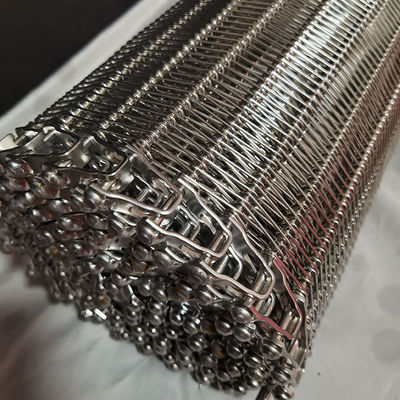

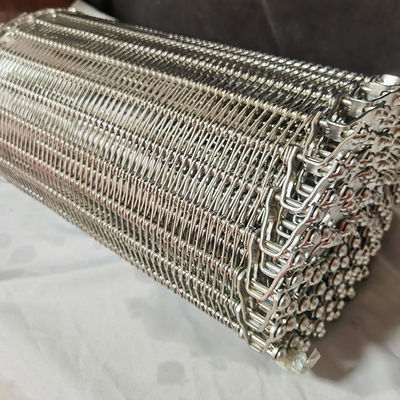

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

This kind of Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt is especially designed for spiral or round conveyor as well as straight-running conveyor. With the ability to side flex, the belt can also be used for conveyors arranged to go around obstacles.The flexible rod belt is popular in the food industries, including cooling, cooking or freezing products.

Product Specifications

Material	Stainless steel 304, or customized
Width	800 mm, or customized
Length	6 m per roll, or customized
Wire Diameter	1.5 mm, or customized
Rod diameter	6 mm, or customized
Spiral pitch	8 mm, or customized
Chain pitch	38.1 mm, or customized

Available Materials

1) AISI 314 (1150°C)

2) SUS 310S (1090°C)

3) SUS 330 (1150°C)

4) SUS 304 (400°C)

5) SUS 316 (1000°C)

6) Super alloy Cr20Ni80 (1250°C) electrical furnace wire

7) SUS 321 (750°C)

8) SUS 410 (700°C)

9) SUS 430 (700°C)

10) Various metal materials as per your requirements

Key Features

Material: High-quality stainless steel construction provides excellent resistance to corrosion and high temperatures
Design: Spiral wire mesh offers flexibility and strength for transporting various products
Chain Driven: Smooth and reliable movement along the conveyor path
Customization: Available in various sizes, wire diameters, and mesh configurations
